Stepper Motor

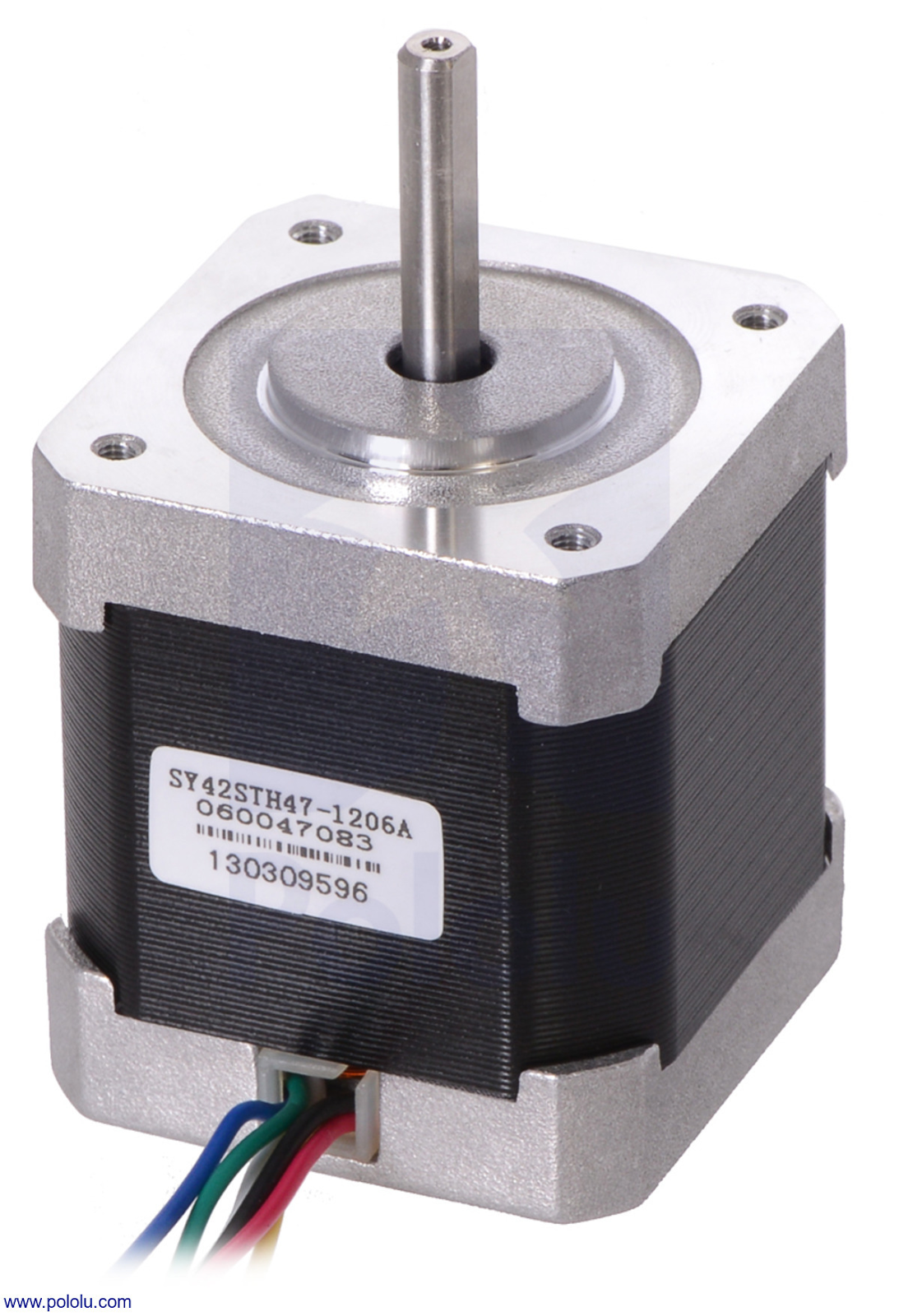

This NEMA 17-size hybrid stepping motor can be used as a unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in).

This hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected (the red-blue pair gives access to one coil and the black-green pair gives access to the other coil).

Specifications

• Size: 42.3 mm square × 48 mm, not including the shaft (NEMA 17)
• Weight: 350 g (13 oz)
• Shaft diameter: 5 mm “D”
• Steps per revolution: 200.
• Current rating: 1.2 A per coil.
• Voltage rating: 4 V.
• Resistance: 3.3 Ω per coil.
• Holding torque: 3.2 kg-cm (44 oz-in)

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

• Printers
• CNC machines
• 3D printer/prototyping machines (e.g. RepRap)
• Laser cutters
• Pick and place machines
• Linear actuators
• Hard drives
