Introduction :
PID Controller is one of the controllers that widely used in almost 90% process of industrial system. The system is easily affiliated with other control methods such as Fuzzy and Robust, which makes it better control system. PID Controller consists of the combination of three controllers; P (Proportional) Controller, I (Integral) Controller, and D (Derivative) Controller, and each has its respective tuning parameters to properly operate called constants. Each type has its advantages and disadvantages. It is difficult and boring to view a response of a system with a variety of combination from input signal and control action. The process needs high accuracy and calculation, yet the description of the output oftentimes is inaccurate, especially for polynomial transfer functions. To address this issue, we need simulation software to acquire response from a system with convenience and time efficiency. One of the software that is appropriate for this

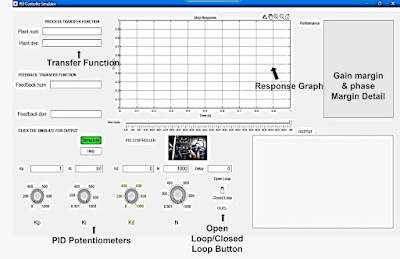

GUI stands for Graphical User Interface, a display application containing tasks, commands, or components of a program that makes it easy for users to run a program. In this GUI has perfected a Graphical User Interface to make it easier to analyze the PID controller, the view of the GUI can be seen in the image below:
Click On link for the PID_Stimulator
https://drive.google.com/file/d/1Yf25RYdxRBZ9h-7uTy3Swlgw2VC7CQrY/view?usp=sharing
